DEF CON 29 Badge Hacking

Collapse
X

  • Filter
  • Time
  • Show
Clear All
new posts

  • #31
    FezPirate who wanted the files from the boot loader here they are https://cryptpad.fr/file/#/2/file/y3...QJ9Al+GsqiciG/

    Do note that on the serial interface and the included instructions it says the following:

    Note: This badge is running very limited firmware. The full firmware will be available when DEF CON starts.

    Comment


    • #32
      Having fun with this, thanks for the help folks! This is the first time that I have done this kind of thing, total n00b over here. I have had an interest in this stuff for years and dabbled here and there but due to mental and physical health issues never had the energy or time. Now I am beginning to feeling better and my drive is in high gear to learn this stuff.

      Comment


      • #33
        I discovered that the right side acts as a volume slider when connected to a computer

        Comment


        • leeloo1313
          leeloo1313 commented
          Editing a comment
          I saw this too - was hoping it would trigger an awesome spotify list ;)

      • #34
        Originally posted by Hat70ri View Post
        compukidmike, are people who have the badge but are not going to DC in person be able to plays the games and do badge stuff?
        I've seen USB over IP being a thing... though how applicable that is, I'm not sure.

        Comment


        • #35
          Has anyone tried taking apart the badge?

          Comment


          • _Giglio
            _Giglio commented
            Editing a comment
            Here you go https://imgur.com/a/1obTPUz

          • Harley Quinn
            Harley Quinn commented
            Editing a comment
            Thanks! Did yours come with the bottom connector or did you solder it on yourself? Mine came with an extra connector but my friends badge did not.

          • _Giglio
            _Giglio commented
            Editing a comment
            Those aren't my photo's - sorry didn't mean to make it seem that way. Mine came with the large USB connector already installed on the bottom.

        • #36

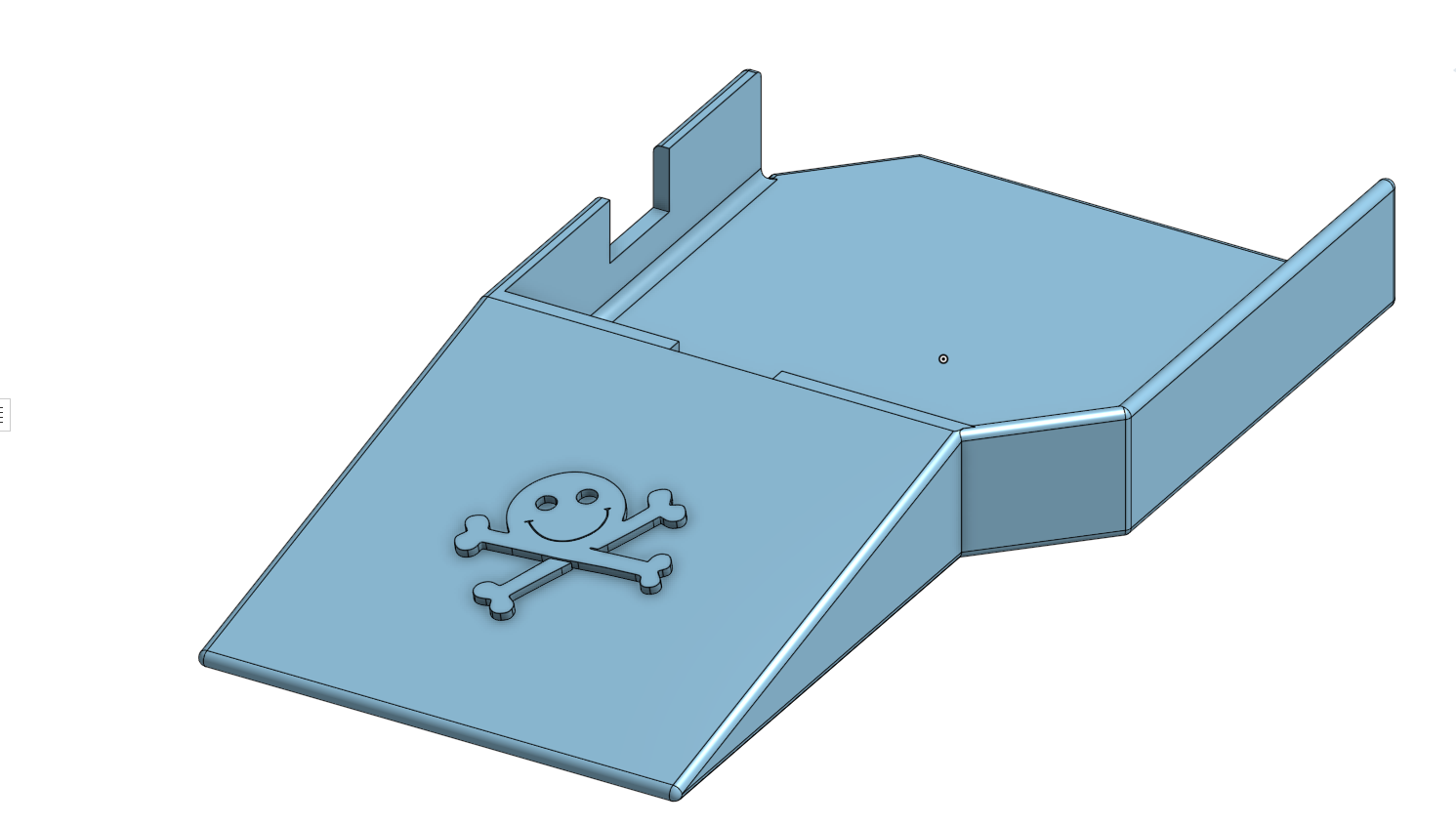

          In the event you want to have a case for you badge so that it doesn't slide around your desk, I whipped this up

          https://cad.onshape.com/documents/95...f173e047bd5c06

          Printed on an Ender5
          • 0.2mm layer hight
          • 10-20% infill
          • 50-80mm/s speed
          Here's a draft version of the holder - https://imgur.com/gallery/sb8Ba0F
          Attached Files

          Comment


          • StackingAces
            StackingAces commented
            Editing a comment
            I don't have a 3D Printer can I buy this somewhere?

          • Zaph
            Zaph commented
            Editing a comment
            Thank you for sharing! Just printed mine.

        • #37
          I tried downloading a .stl file for this, but for some reason the dimensions are really wonky. I've tried both PrusaSlicer and Cura. PS will slice it if I blow it way up, but Cura just refuses and generates errors.

          Can you please tell me what the max dimension on the X axis is? From your drawing it looks like about 73mm (~2.87") but I can't be sure, and I don't want to print it until I know the size. I want to print this and bring it along with me.

          Thanks.

          Originally posted by wyatt_earp View Post
          In the event you want to have a case for you badge so that it doesn't slide around your desk, I whipped this up

          https://cad.onshape.com/documents/95...f173e047bd5c06

          Printed on an Ender5
          • 0.2mm layer hight
          • 10-20% infill
          • 50-80mm/s speed
          Here's a draft version of the holder - https://imgur.com/gallery/sb8Ba0F

          Comment


          • #38
            I noticed that OnShape is defaulting to exporting in meters instead of mm ... I don't know why because the project is set to mm. It should be pretty close to 72-73mm. Let me see if I can fix the link for editing.
            I exported the STL and put it on Thingiverse to try and address the slicing issues. Cura 4.8.0 didn't have any issues with it?

            https://www.thingiverse.com/thing:4919582

            Comment


            • #39
              I have Cura 4.8.0 and here's what I get when I try to slice it ...

              Click image for larger version

Name:	curabad.png
Views:	2467
Size:	69.3 KB
ID:	238624
              Attached Files

              Comment


              • #40
                The one on Thingiverse slices normally. It says the X dimension is 74.25mm. I'll try printing it when I get back home.

                Thanks.

                Comment


                • #41
                  Originally posted by dmr View Post
                  The one on Thingiverse slices normally. It says the X dimension is 74.25mm. I'll try printing it when I get back home.

                  Thanks.
                  Thanks for letting me know - I'm not super familiar with the OnShape thing - but clearly the Thingiverse distribution is a better idea!

                  Comment


                  • #42
                    I just got in. It sliced fine (PrusaSlicer) and is now printing. Gonna take 2 hours and some minutes to print. I'll post a photo when it finishes.

                    Comment


                    • #43
                      Hi Just got my badge today. It looks great however the J3 connector pin was not soldered in and a small piece of plastic I found in the bubble wrap. Not sure where to contact but in discord it was mentioned to post it in here. Thanks!

                      Comment


                      • wyatt_earp
                        wyatt_earp commented
                        Editing a comment
                        Check out the contact info at https://shop.defcon.org/ and let them know what happened. There are indications there will be spare key-caps at the con, but other pieces are unknown at this point.

                      • pigeondrops
                        pigeondrops commented
                        Editing a comment
                        Thanks I just emailed them.

                    • #44
                      Here's the finished print ...

                      Looks good and printed nicely. Thanks.

                      Click image for larger version

Name:	dc29bh1.jpg
Views:	2315
Size:	36.6 KB
ID:	238709

                      Comment


                      • #45
                        Goon firmware as shipped: https://kallahar.com/defcon/2021/Def...as_shipped.zip

                        UF2 Bootloader v3.13.0-9-g2fd0593-dirty FAO
                        Model: DEF CON 29 Badge
                        Board-ID: SAMD21G16B-dc29-v0
                        --- The fuck? Have you ever BEEN to Defcon?

                        Comment


                        • raven_coda
                          raven_coda commented
                          Editing a comment
                          Thanks for posting this. The firmware has the same hash as the human one so it looks to be no different.
