  • 2021 Defcon Tor Badge

    We are attempting to pull off a Tor badge this year for Defcon 29. All profits will go to the Tor organization (just like 2 years ago).
    Although they will not have a vendor booth this year, so I'm still working on some logistics.
    I should have the badges by mid July and assuming they work I'll be able to provide more details then.

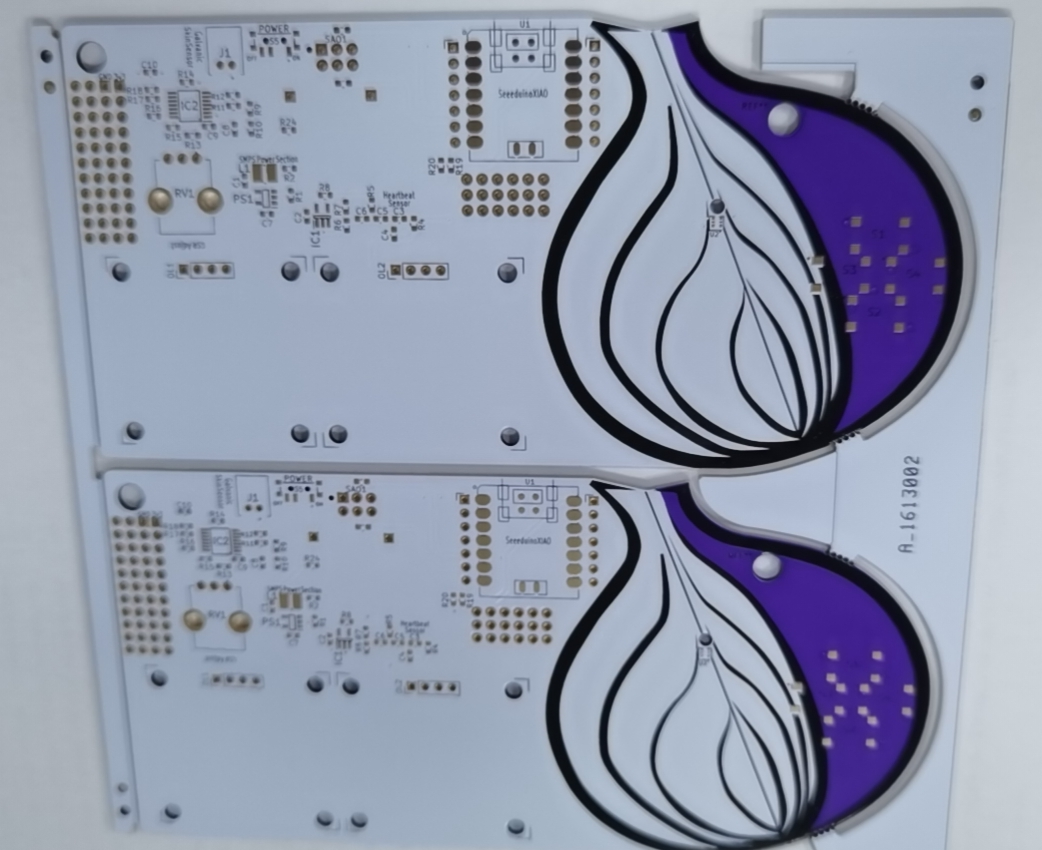

    For now here's a blurry picture teaser from the fab

    Click image for larger version

Name:	seeedboard.front.cropped.png
Views:	3672
Size:	854.1 KB
ID:	237395

    If you're really into learning the latest you can follow @see_ess or @gigstaggart
    Attached Files
  • seeess
    ........
    Answer selected by seeess at December 16, 2021, 08:28.

    I received the working boards so it looks like this is happening, here are the details:

    What it does - It acts as a mini lie detector. The badge has two primary sensors, a GSR sensor and a heart rate sensor. These are two of the sensors used in a polygraph machine. The output of these sensors with some statistics is graphed to each of the two 1.3" OLED screens.
    Use it to interrogate your friends, or to practice how to get through your next fed-job interview

    Hardware - It is run off a cortex M0+ arduino based xiao, that you can connect to via USB-C. The stock firmware also outputs the raw data over serial USB to allow further analysis of the data on a computer. There is one 1.69bis SAO header, finger cuffs used for the GSR sensor, and is run off two AA batts with a boost vreg to 3.3v.
    There are 0.1" headers for every pin on the xiao. There is also 3.3v/gnd and other 0.1" holes available for prototyping.

    Where to buy - Because Tor does not have a vendor booth this year, I've teamed up with hacker warehouse who has agreed to help sell them at their vendor booth.
    Their booth will be in the vendor area of the conference, which I believe is open Thursday - Sunday (check the defcon schedule for details). Hacker warehouse will have to charge tax as they are not a non-profit.

    Price - $120 including tax which includes the badge, custom lanyard, finger cuff cable, two sets of batts, stickers, and probably some googly eyes

    All profits from the sale of this badge go directly to the Tor project, just like 2 years ago. I am not funded by anyone, I front all costs of development myself. I do not charge for my time or effort, I only hope to recoup any material costs.
    If you choose to purchase a badge, thanks for supporting Tor.

    Source code and instructions on how to reflash the badge (via an arduino IDE) will be available prior to defcon on github. Source is licensed under the permissive WTFPL

    There will be at least one challenge (that @gigstaggart dreamed up) with a prize going to the winner

    I will post a video of the badge in action and all the features it has, if I ever get out of soldering-hell over here. I expect to have that available a few days before defcon starts so everyone can determine if it is worth it to them.

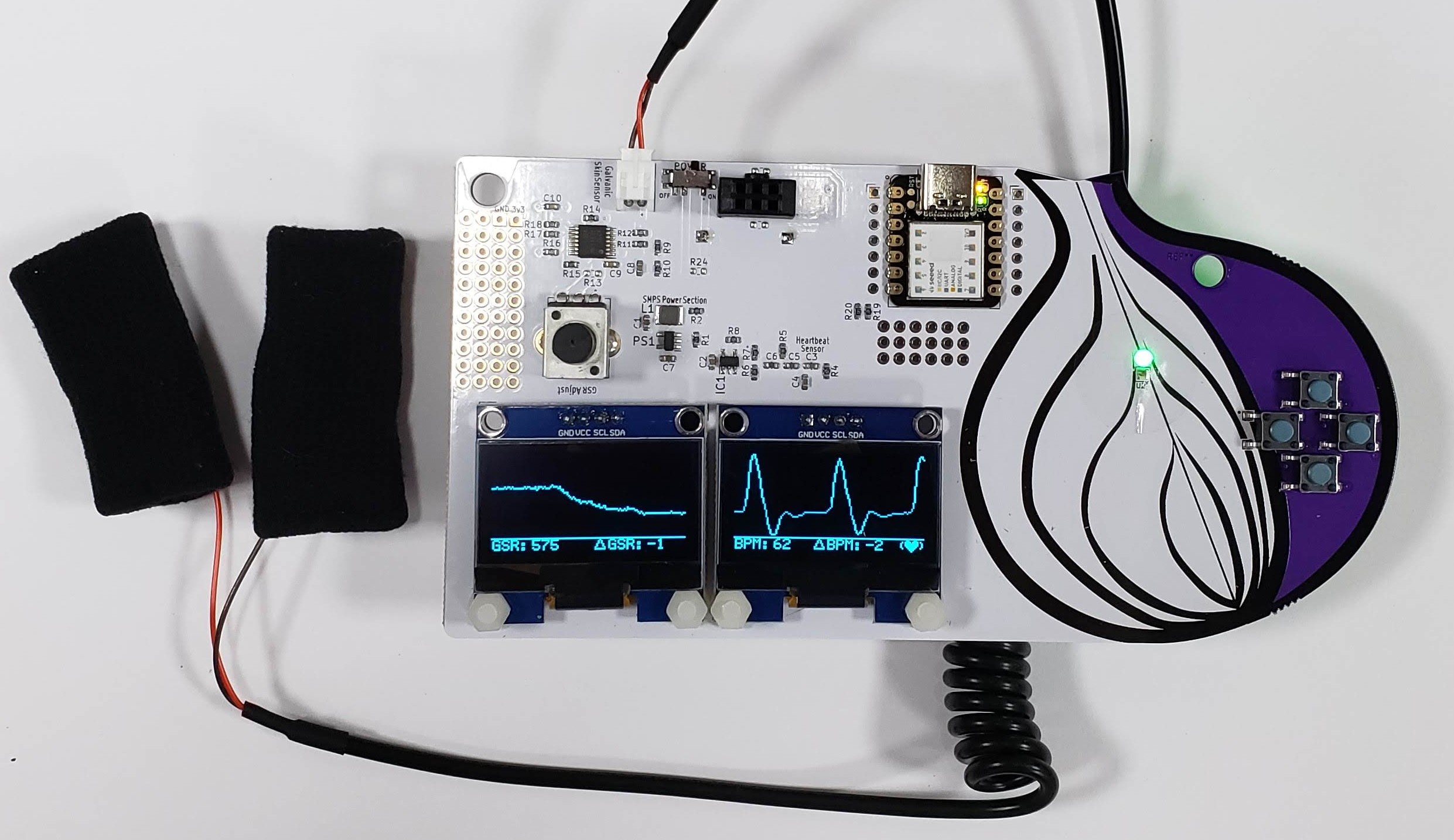

    Here's a higher-res picture with the current state of the interface (there are some other modes besides this primary lie detector mode).

    Click image for larger version

Name:	zQhVDHG.jpg
Views:	2815
Size:	429.0 KB
ID:	238140

    Comment


    • #2
      What do they do?
      PGP key: dtangent@defcon.org valid 2020 Jan 15, to 2024 Jan 01 Fingerprint: BC5B CD9A C609 1B6B CD81 9636 D7C6 E96C FE66 156A

      Comment


      • #3
        Basically a lie detector. This badge has two primary sensors, a reflection-based pulse sensor, and a galvanic skin response (GSR) sensor. These sensors are traditionally used in a polygraph machine, and GSR is also used in the E-meter.
        It has two 1.3" oled screens for sensor output and analysis. It runs on a xiao that has a USB-C connector and is easy to reprogram with arduino

        You can practice your interrogation skills on a friend, or practice beating a polygraph for your next fed job.

        Comment


        • #4
          Will people attending virtually be able to get this badge or do you just plan on selling in-person?

          Comment


          • seeess
            seeess
            ........
            seeess commented
            Editing a comment
            I plan on selling all that I can in-person. If I'm left with anything after defcon I'll first offer the badges for Tor to sell through their site (though they didn't have much interest previously).
            I'd rather not sell them myself, I'm not setup for the logistics of shipping stuff out (I'd be standing in line at the post office and I'd be paying retail shipping rates). Plus I don't really want to collect anyone's addresses.
            Basically your best option is to try to find someone at defcon that can buy one for you. Another possibility is I could re-make these badges next year if Tor has a proper vendor booth in 2022, but I'm not sure how many people will be interested in "last year's" badge in 2022.
            If you've been running a Tor exit node for 6+ months or something maybe I'll make an exception.

        • #5
          stoked looks great i am on for one !

          Comment


          • #6
            If you don't have a vendor booth/table, do you know when and where these will be sold? Also, any approximate price?

            Comment


            • seeess
              seeess
              ........
              seeess commented
              Editing a comment
              I'm hoping to work with a friendly vendor to help me sell these at their booth, but that is not confirmed yet. Once I have the badges in hand and I know they work I'll finish ordering other necessary components like lanyards, batteries, boxes, etc.
              I don't have a price yet because I don't know my final costs on everything. And selling at a friendly vendor booth requires them to collect tax since Tor doesn't have a non-profit booth this year.
              I expect it to be sub $150 for everything... dual soldermask badges, lanyards, two sets of batts, stickers, fingercuffs (for the GSR sensor), box, etc. That's more than I wanted it to be, but having a xiao that is arduino-reprogrammable via usb-c, 1.3" dual OLEDs instead of the typical 0.96", and finger cuffs are not cheap. And there has to be a profit in there for Tor, otherwise it's not a very effective fundraiser.
              I pretty happy with the prototype, I'll have a full video walk-through beforehand so everyone can decide if they think it is worth it to them.
              I will update this thread and post on twitter when I have more concrete plans.

          • #7
            Yeah i get it, its a pain to sell online. I will probably go the route of someone buying for me in-person. Thank you for your contribution!

            Comment


            • #8
              The image is blurry - is that an ESP8266 in the corner?

              Comment


              • #9
                I received the working boards so it looks like this is happening, here are the details:

                What it does - It acts as a mini lie detector. The badge has two primary sensors, a GSR sensor and a heart rate sensor. These are two of the sensors used in a polygraph machine. The output of these sensors with some statistics is graphed to each of the two 1.3" OLED screens.
                Use it to interrogate your friends, or to practice how to get through your next fed-job interview

                Hardware - It is run off a cortex M0+ arduino based xiao, that you can connect to via USB-C. The stock firmware also outputs the raw data over serial USB to allow further analysis of the data on a computer. There is one 1.69bis SAO header, finger cuffs used for the GSR sensor, and is run off two AA batts with a boost vreg to 3.3v.
                There are 0.1" headers for every pin on the xiao. There is also 3.3v/gnd and other 0.1" holes available for prototyping.

                Where to buy - Because Tor does not have a vendor booth this year, I've teamed up with hacker warehouse who has agreed to help sell them at their vendor booth.
                Their booth will be in the vendor area of the conference, which I believe is open Thursday - Sunday (check the defcon schedule for details). Hacker warehouse will have to charge tax as they are not a non-profit.

                Price - $120 including tax which includes the badge, custom lanyard, finger cuff cable, two sets of batts, stickers, and probably some googly eyes

                All profits from the sale of this badge go directly to the Tor project, just like 2 years ago. I am not funded by anyone, I front all costs of development myself. I do not charge for my time or effort, I only hope to recoup any material costs.
                If you choose to purchase a badge, thanks for supporting Tor.

                Source code and instructions on how to reflash the badge (via an arduino IDE) will be available prior to defcon on github. Source is licensed under the permissive WTFPL

                There will be at least one challenge (that @gigstaggart dreamed up) with a prize going to the winner

                I will post a video of the badge in action and all the features it has, if I ever get out of soldering-hell over here. I expect to have that available a few days before defcon starts so everyone can determine if it is worth it to them.

                Here's a higher-res picture with the current state of the interface (there are some other modes besides this primary lie detector mode).

                Click image for larger version

Name:	zQhVDHG.jpg
Views:	2815
Size:	429.0 KB
ID:	238140

                Comment


                • #10
                  Love it, looking forward to picking one of these up.

                  Comment


                  • #11
                    Is there any way to pre-order or is it cash in-person?

                    Comment


                    • seeess
                      seeess
                      ........
                      seeess commented
                      Editing a comment
                      There is no pre-order, they will be for sale at the "hacker warehouse" vendor area during whatever the vendor hours will be. They take cash and credit card.
                      I'll bring a few with me to the defcon shoot on wednesday if you're in town early. I'll have a few to sell directly if you really want to meet up before the vendor area is open. Message me on twitter if you're interested in that

                      defcon shoot info: https://forum.defcon.org/node/237363

                  • #12
                    Definitely going to try and grab one of these.

                    Comment


                    • #13
                      Thanks for the reply. Looking forward to snagging this one.

                      Comment


                      • #14
                        Here is the video overview of the defcon 29 Tor badge that goes through the different features and how to use them: https://www.youtube.com/watch?v=aaRbma9SlGY

                        Also the code and manual has been posted: https://github.com/seeess/Defcon-Tor-29-Badge
